The product selection
EX-01
Cabin Model: EX-M01 (optional)
Cabin Model: EX-M02 (optional)
Cabin Model: EX-M04 (optional)
Service area
Used in
- Shopping mall
- Commercial buildings
- Hotels
Manufactured & Supplied by Fuji Yide
Passenger Elevator
Intelligent System

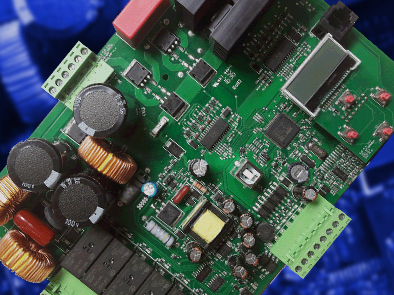

Highly integrated and intelligent control system
Double 32 bit CPU, mutual control between main CPU and sub CPU, increases the speed of data processing to a great extent. Moreover, the highly intellectual micro-computer module inside our systems guarantee the most secure, accurate, and effective control to our elevator.
Safety Function
Brake force automatic detection
Brake rubber abrasion, which is caused by elevator brake using for a long time, will lead to decline the brake force. System will detect the brake force and alarm remind according to the "Standard".
Hoist rope sliding detection
Offset of running location shoule be detected in real time. Elevator will slow down and stop running when the steel rope slipping exceeds the allowable value. (stopping on the nearest floor)
Remote monitoring
Intelligent terminal remote monitoring
It can monitor the elevator parameters and running condition in the monitor center or remote intelligent cellphone.Meanwhile, it can transfer voice, pictures and videos by data stream.
Intelligent analysis
Failure analysis expert system
To acquire the elevator state information automatically when it is failure, then system will make analysis and dispose. It will display the analysis resule and describe the failure.
Intelligent IC card system
IC card can be configured according to user requirements, IC card can execute permissions management for elevator, while improves the safety of the building management.
Group control management
High performance group control management system enable 3-8 sets of elveator to carry out the function of group control, which response and deal with the hall call reasonably and reduce the passengers' waiting time effectively. The system adapted real-timely the change of the rider ship.
Passenger Elevator
Energy conservation & Environment protection
Reduce the building carbon emissions
Gtec elevator complies with the Products Research & Development standard of Fuji Yide. With advanced technology and design concept, featuring effective running and energy-conservation and environment-protection, it provides a perfect carrier for your future.
Permanent magnetic power
The comprising of using rare earth material, combined coaxial driven mode, digital convert and group computer control technique lessened the cost and the energy dissipation machine room.Gearless traction machine needn't to change oil, so there is no oil pollution and the noise is lower.
Energy feedback system
The optional device can transfer the energy consumption in the braking resistance into electrical energy which will be supplied to other elevator or electrical equipments in the building.Our "green generator" can save 30% energy consumption and increase energy saving and environment protection benefit.
LED automatic lighting
LED lighting device in car is beneficial to long-term ues, the lighting is soft and bright, low-heat, safe, high efficient and no radiation, and automatically power off in the elevator idle, it is environment protection.
Sterilization function
Applying advanced environment protection technology, PM2.5 dust in the air etc. will from to molecular clusters and sink to the ground by anion. It will less the bacterial survival ability or kill bacteria. Timing sterilizing and air cleaning improves the cabin environment.

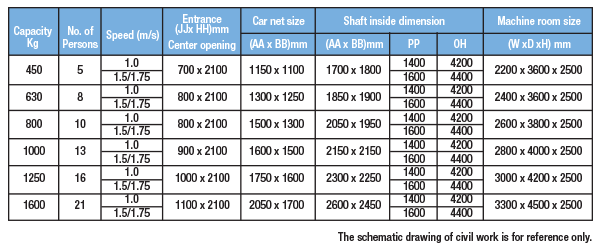

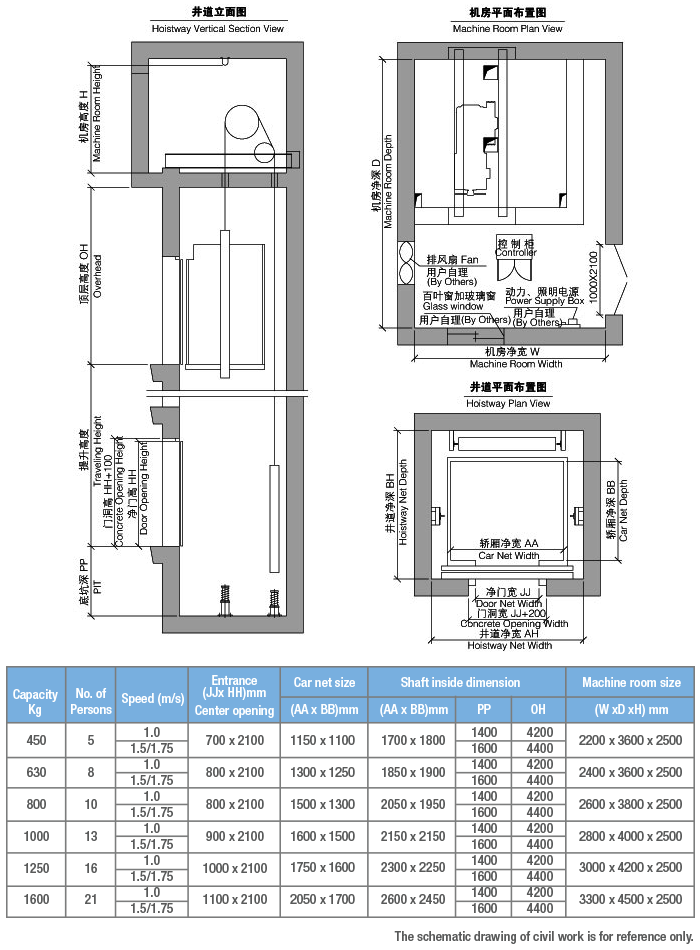

Technical parameters
